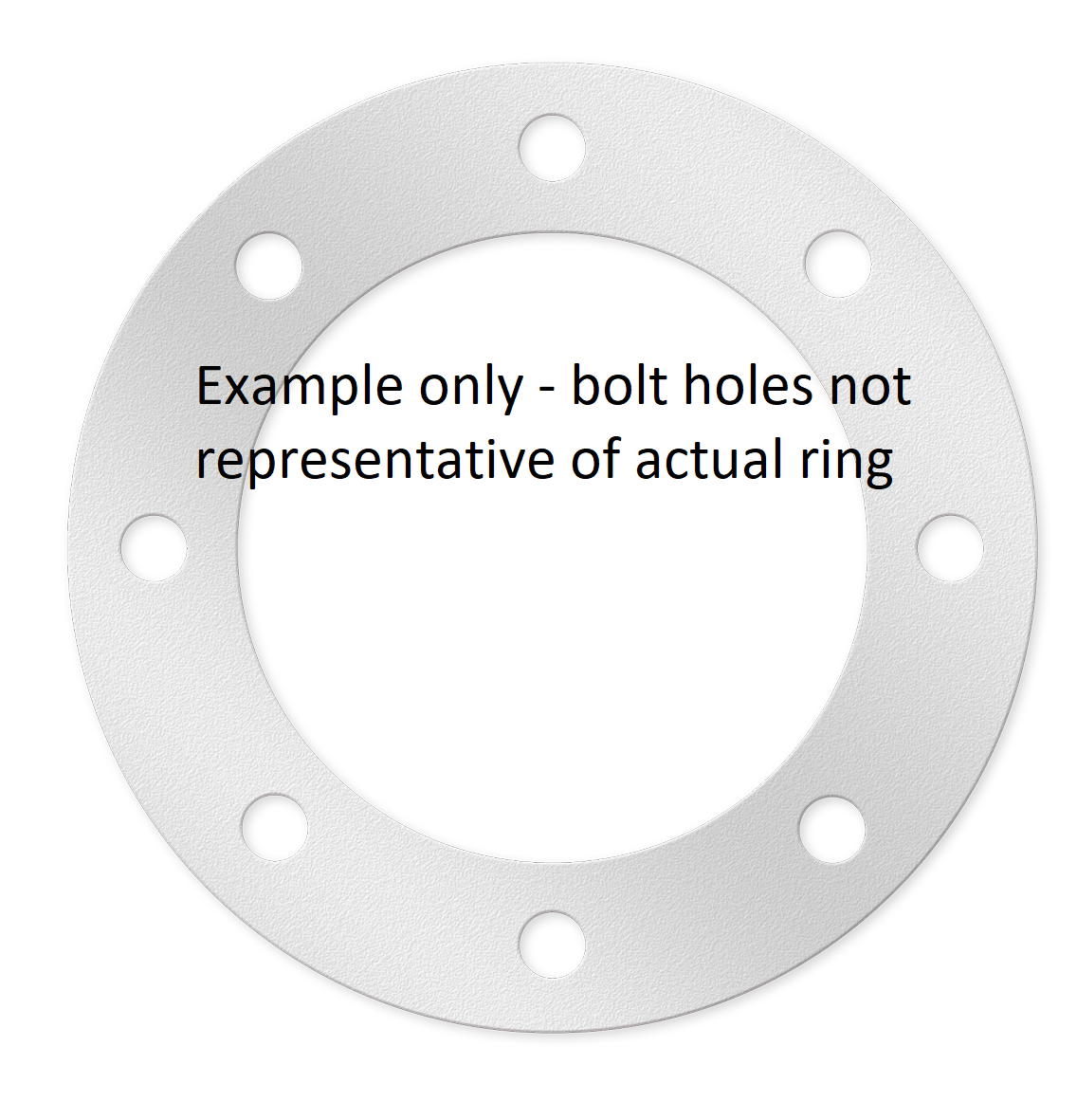

225X8IN AS2129 TABLE E BACKING RING GALVANISED STEEL TO SUIT PE
System PE Systems
Product Code PEBRE225
Product Properties
Size
225MM
Rating
PN14
Length
BLANK
Primary Material
OTHER
UOM
EACH
Unprotected UV Exposed
99.9% UV stable (black only)
Product Certifications
ISO TYPE 5 - AMI 20303|WATERMARK WM20303|ISO TS29001|ISO9001 FM 597347.1|WSAA 1127 Part 1&2|
Industry Specific Names
BACK UP PLATE
Product Dimensions
Size
225MM
Weight
6.2
Flange OD
335
Flange Thickness
19
Pitch Circle Diameter
292
Number of Bolt Holes
8
Bolt Hole Diameter
22
