Length

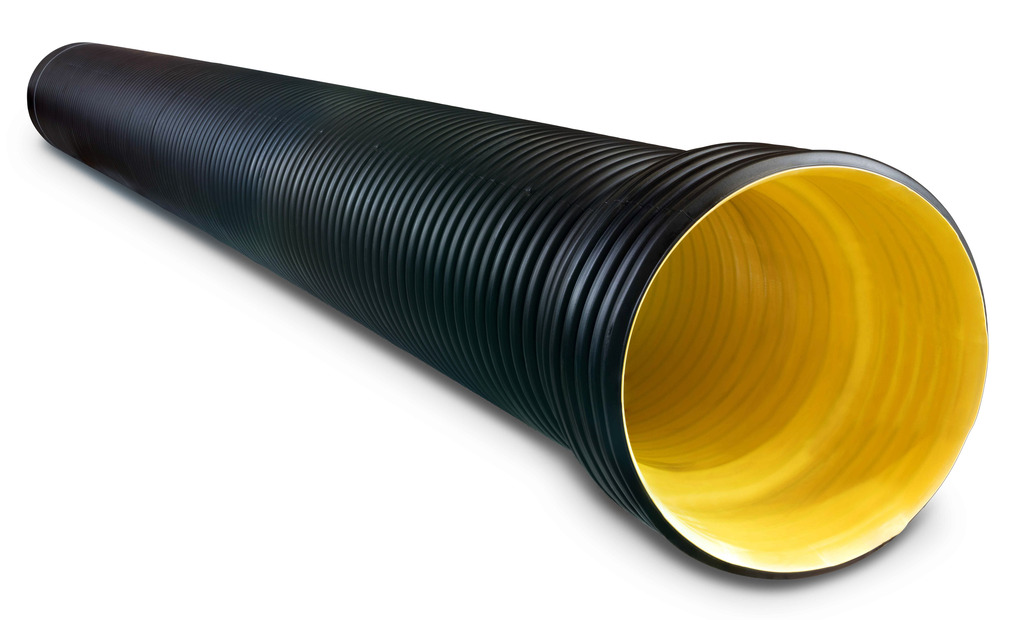

DN375 x 6m SN8 BlackMax® Drainage Pipe RRJ
System PP Drainage & Sewer Systems
Product Code GR8375
Product Properties
Size
375MM
Rating
SN8
Length
6.0M
Primary Material
POLYPROPYLENE
UOM
LENGTHS
Joint Type
RRJ
Rubber Ring Material
SBR
Colour
Black with yellow internal liner
Minimum Cover Depth
Not subject to vehicular loading - min. cover depth 300mm | Subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre-Iplex Lubricant
22
Allowable Operating Temperature - Degrees
Allowing Operating Temperature. Up to 50℃ Re rating is applied for Temperatures >30℃
Socket Deflection
2°
Maximum Diametric Deflection - 50yrs
7.50%
Unprotected UV Exposed
2 Years
Maximum Support Spacing of Pipe Graded
2.15m
Maximum Support Spacing of Pipe Vertical
4.3m
Markings
Iplex Pipelines, DN, SN8, PP, Date of Manufacture, BlackMAX®
Product Certifications
Standards Mark and Water Mark to AS/NZS 5065
Product Dimensions
Size
375MM
Inner Diameter
373
Weight
51
Crate Qty
6
Crate Weight
302.4kg
Wall Thickness
2.4
Socket Depth
176
Witness Mark Detail
176
Profile Pitch
39.8
CAD PDF
View
